台湾HYDROMAX新鸿HGP-1.5A齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-1.5A |
| Mounting | F Flange Type |
| Delivery Capacity | 08,1,12,16,2,25,3,4,5,65,8 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | Y spline shaft |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-1.5A-F08R | 0.8 | 300 | 350 | 1800 | 5000 | 1000 | 0.89 |
| HGP-1.5A-F1R | 1 | 300 | 350 | 1800 | 5000 | 800 | 0.91 |
| HGP-1.5A-F12R | 1.2 | 300 | 350 | 1800 | 5000 | 800 | 0.92 |
| HGP-1.5A-F16R | 1.6 | 300 | 350 | 1800 | 5000 | 800 | 0.93 |
| HGP-1.5A-F2R | 2 | 300 | 350 | 1800 | 4000 | 800 | 0.94 |
| HGP-1.5A-F25R | 2.5 | 300 | 350 | 1800 | 4000 | 800 | 0.95 |
| HGP-1.5A-F3R | 3.1 | 300 | 350 | 1800 | 4000 | 700 | 0.97 |
| HGP-1.5A-F4R | 4 | 300 | 350 | 1800 | 4000 | 600 | 1.0 |
| HGP-1.5A-F5R | 5 | 250 | 300 | 1800 | 4000 | 500 | 1.04 |
| HGP-1.5A-F65R | 6.3 | 250 | 300 | 1800 | 3200 | 500 | 1.14 |
| HGP-1.5A-F8R | 8 | 210 | 250 | 1800 | 2400 | 500 | 1.17 |

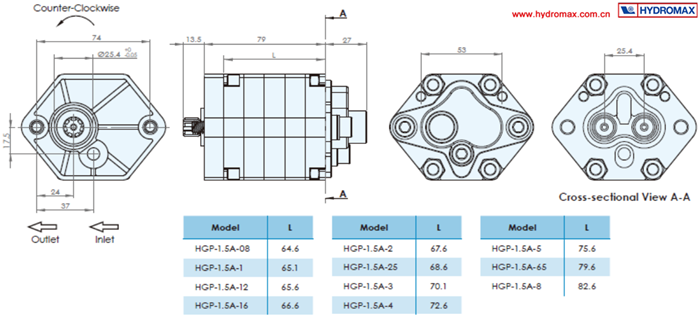

DIMENSIONS(UNIT:mm)

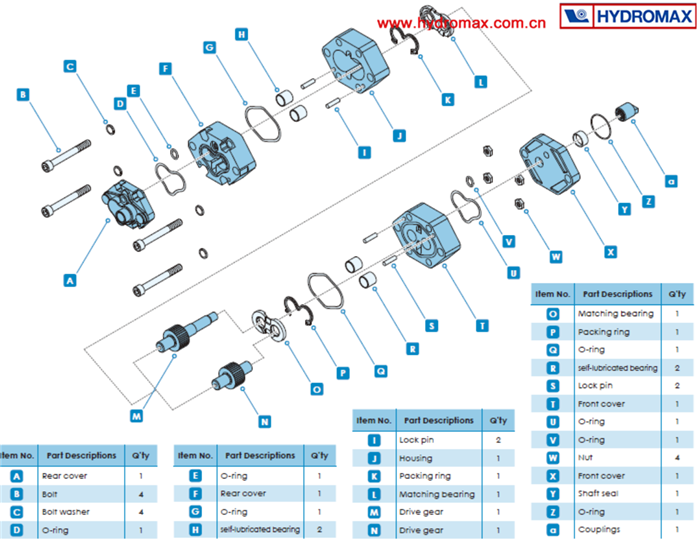

DECOMPOSITION CHARTS
