台湾HYDROMAX新鸿HGP-3AS齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-3AS |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 4,6,8,11,13,14,17,19 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Flange Mounting Type | 4BJ JIS 4-bolt |
| Inlet and Outlet* | F flange type(F1~F6) |
| P PT(P1~P2) | |
| G G,BSP,PF(G1~G2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |||
| Displacement | Port Size | (PT) | |||||||
| Capacity | |||||||||
| (cc/rev) | normal | Max | Rate | Max | Min | Inlet | Outlet | ||
| HGP-3AS-F4R | 4 | 210 | 1800 | 4000 | 700 | 3/4″ | 1/2″ | 1.77 | |
| HGP-3AS-F6R | 6 | 210 | 1800 | 4000 | 700 | 3/4″ | 1/2″ | 1.85 | |
| HGP-3AS-F8R | 8.4 | 210 | 1800 | 3500 | 700 | 3/4″ | 1/2″ | 1.93 | |
| HGP-3AS-F11R | 11 | 210 | 1800 | 3000 | 600 | 3/4″ | 1/2″ | 2.08 | |
| HGP-3AS-F13R | 13 | 210 | 1800 | 3000 | 600 | 3/4″ | 1/2″ | 2.18 | |
| HGP-3AS-F14R | 14.3 | 210 | 1800 | 3000 | 500 | 3/4″ | 1/2″ | 2.3 | |
| HGP-3AS-F17R | 16.5 | 210 | 1800 | 3000 | 500 | 3/4″ | 1/2″ | 2.41 | |
| HGP-3AS-F19R | 19.2 | 210 | 1800 | 3000 | 500 | 3/4″ | 1/2″ | 2.53 |

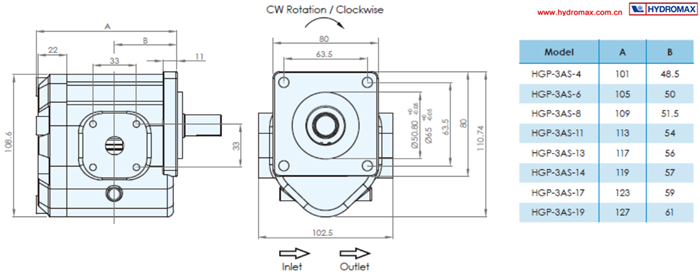

DIMENSIONS(UNIT:mm)
