台湾HYDROMAX新鸿HGP-4A齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-4A |
| Mounting | F Flange Type |
| Delivery Capacity | 20,23,25,28,32,36,40,45,50,55,60,70 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Flange Mounting Type | 2BA SAE 2-bolt (Type A) |
| 2BB SAE 2-bolt (Type B) | |

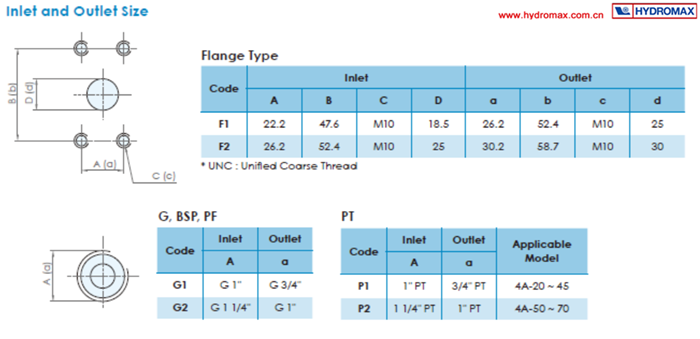

| Inlet and Outlet* | F flange type(F1~F2) |
| P PT(P1~P2) | |
| G G,BSP,PF(G1~G2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | ||
| Displacement | Port Size | (PT) | ||||||
| Capacity | ||||||||
| (cc/rev) | normal | Max | Loaded | Unloaded | ||||
| HGP-4A-F20R | 20 | 250 | 300 | 600 | 3000 | 1″ | 3/4″ | 4.1 |
| HGP-4A-F23R | 22.5 | 250 | 300 | 600 | 3000 | 1″ | 3/4″ | 4.6 |
| HGP-4A-F25R | 25 | 250 | 300 | 600 | 3000 | 1″ | 3/4″ | 5.1 |
| HGP-4A-F28R | 28 | 250 | 300 | 600 | 43000 | 1″ | 3/4″ | 5.7 |
| HGP-4A-F32R | 31.5 | 250 | 300 | 600 | 3000 | 1″ | 3/4″ | 6.4 |
| HGP-4A-F36R | 35.5 | 210 | 250 | 600 | 3000 | 1″ | 3/4″ | 7.1 |
| HGP-4A-F40R | 40 | 210 | 250 | 600 | 3000 | 1″ | 3/4″ | 8 |
| HGP-4A-F45R | 45 | 210 | 250 | 600 | 2600 | 1″ | 3/4″ | 8.8 |
| HGP-4A-F50R | 50 | 175 | 210 | 600 | 2500 | 1 1/4″ | 1″ | 9.7 |
| HGP-4A-F55R | 55 | 175 | 210 | 600 | 2400 | 1 1/4″ | 1″ | 10.7 |
| HGP-4A-F60R | 60 | 140 | 175 | 600 | 2000 | 1 1/4″ | 1″ | 11.8 |
| HGP-4A-F70R | 70 | 125 | 140 | 600 | 2000 | 1 1/4″ | 1″ | 13.1 |

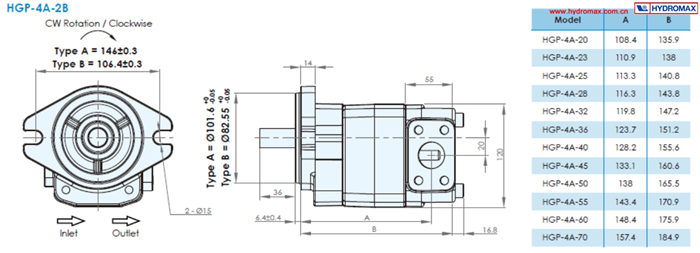

DIMENSIONS(UNIT:mm)

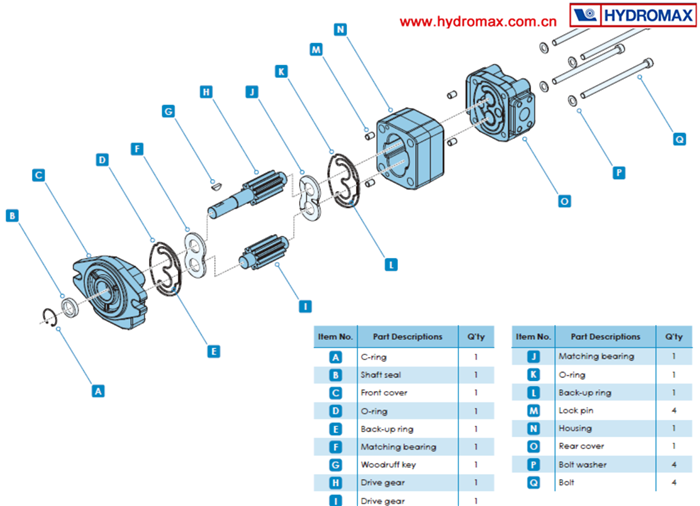

DECOMPOSITION CHARTS

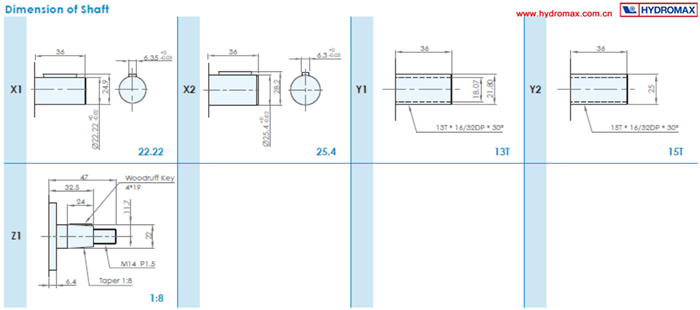

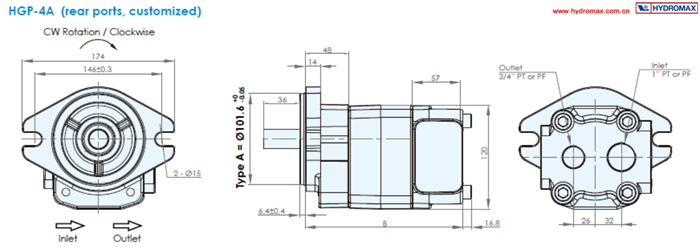

ADDITIONAL DIMENSION
