HGP-3.5A-F11R-台湾HYDROMAX齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-3.5A |
| Mounting | F Flange Type |
| Delivery Capacity | 11 |
| Rotation Direction | R Clockwise |
SPECIFICATIONS
| Model | Accurate Displacement Capacity (cc/rev) |
Operational Pressure (kgf/cm2) |
Max. Pressure (kgf/cm2) |
Max. Speed (r.p.m.) |
Weight (kg) |
| HGP-3.5A-F11R | 11 | 240 | 280 | 3000 | 16 |

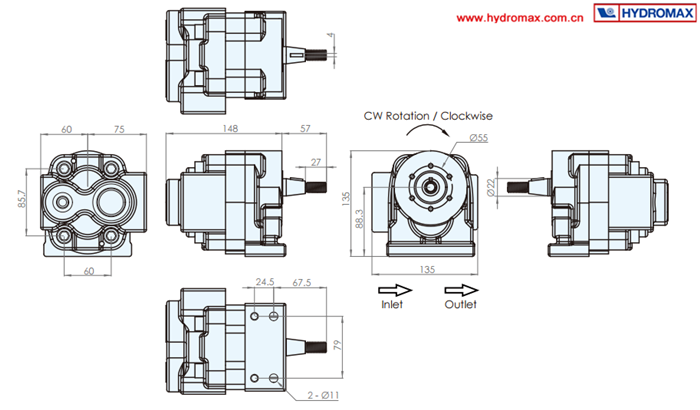

DIMENSIONS(UNIT:mm)
